首頁 > 促銷活動 > 優勢產品 懸滴結晶板
Swissci懸滴結晶板是一種新型的96孔蛋白質結晶系統，首次可以識別和移除單個孔，而不會干擾板內正在生長的晶體。非常適合nl結晶篩選和μl優化。專利設計產品，凸起的寬孔便于操作，Allen鑰匙系統可實現平穩拆卸，系統中新穎的封閉塞可直接用于隨后的顯微鏡觀察和X衍射?？壮蕡A錐形，有透鏡效果，便于觀察；密封性好；容積大（儲液槽50-200μl，液滴50 nl-5μl）；符合ANSI/SLAS 1-2004標準。
品名：MRC Hanging Drop Plate 100 Micron Seal Round Well UVP
貨號：HDP-UVP-96T02
品名：MRC Hanging Drop Plate 40 Micron Seal Round Well UVP
貨號：HDP-UVP-96T03
品名：MRC Hanging Drop Plate Round Seal Non UVP
貨號：HDP-PE-96T03

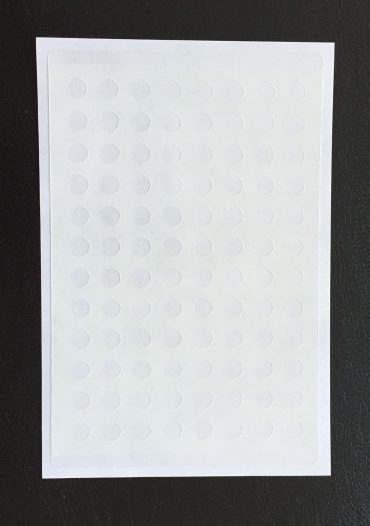

The revolutionary SWISSCI Hanging Drop Crystallisation Plate Seal (UVOP / Non-UVP) comes ready to use with a dust-free protective coating and specialty polymer base. The Seals accommodate up to 3 separate drops of protein and fit the standard 2-drop or 3-drop MRC plates. The product has a 100 or 40-micron thin layer of UVP specialty polymer developed for compact drop creation and ability to shoot X-ray without any noticeable diffraction. The non-UVP seal comes in 100-micron layer.
The SWISSCI hanging drop seals can be run with individual drops in the 96 positions or 192 drop - or 288 drops.
The volume of the drop is typically between 50 and 100 nanolitres.
The seal covers sit directly over the microwell plate crystallization reagent wells and are closed with a long term resistant closing adhesive which is validated not to ingress into the sample - nor lead to seal corruption.
To remove an individual crystal the seal may be peeled back or simply cut out with a scalpel. The material is very thin although still remaining as a perfect evaporation barrier and can be sliced with a knife very easily.
The seals are produced in a class 100,000 cleanroom environment and guaranteed to be dust and scratch-free.
Optical quality is of the highest level available.
The seals are able to be used in the UV / Non-UVP range thus enabling the user to recognize salt - from protein crystals under the Ultra Violet light source microscope.
