首頁 > 促銷活動 > 優勢產品 SWISSCI 2 Lens/3 Lens坐滴結晶板
Swissci坐滴結晶板孔徑加寬，便于操作；圓錐形孔，微編號在顯微鏡下可見，便于觀察；高級聚合物具有紫外透射性，可用于區分鹽晶體和蛋白質晶體；密封性好，空間間隔寬，提供足夠的空間使膠帶密封；結構堅固，不會發生中央彎曲；長期儲存樣品也不會蒸發；容量范圍廣，樣品處理量大（儲液槽50-100μl，液滴50 nl-5μl），可用機器人進行高通量結晶；設計符合ANSI/SLAS 1-2004標準，通用性強，易于自動化操作。Midi高度為11.7mm；Low Profile高度為7.75mm。
貨號：3W96T-UVP
品名：SWISSCI 3 well plate, highly UV transparent polymer
貨號：3W96T-PS
品名：SWISSCI 3 well plate, transparent polystyrene
貨號：UVXPO-3LENS
品名：Swissci 3 Lens plate, UVXPO
貨號：3W96TLP-UVP
品名：SWISSCI 3 well low profile plate, highly UV transparent polymer
貨號：3W96TLP-PS
品名：SWISSCI 3 well low profile plate, highly UV transparent polymer

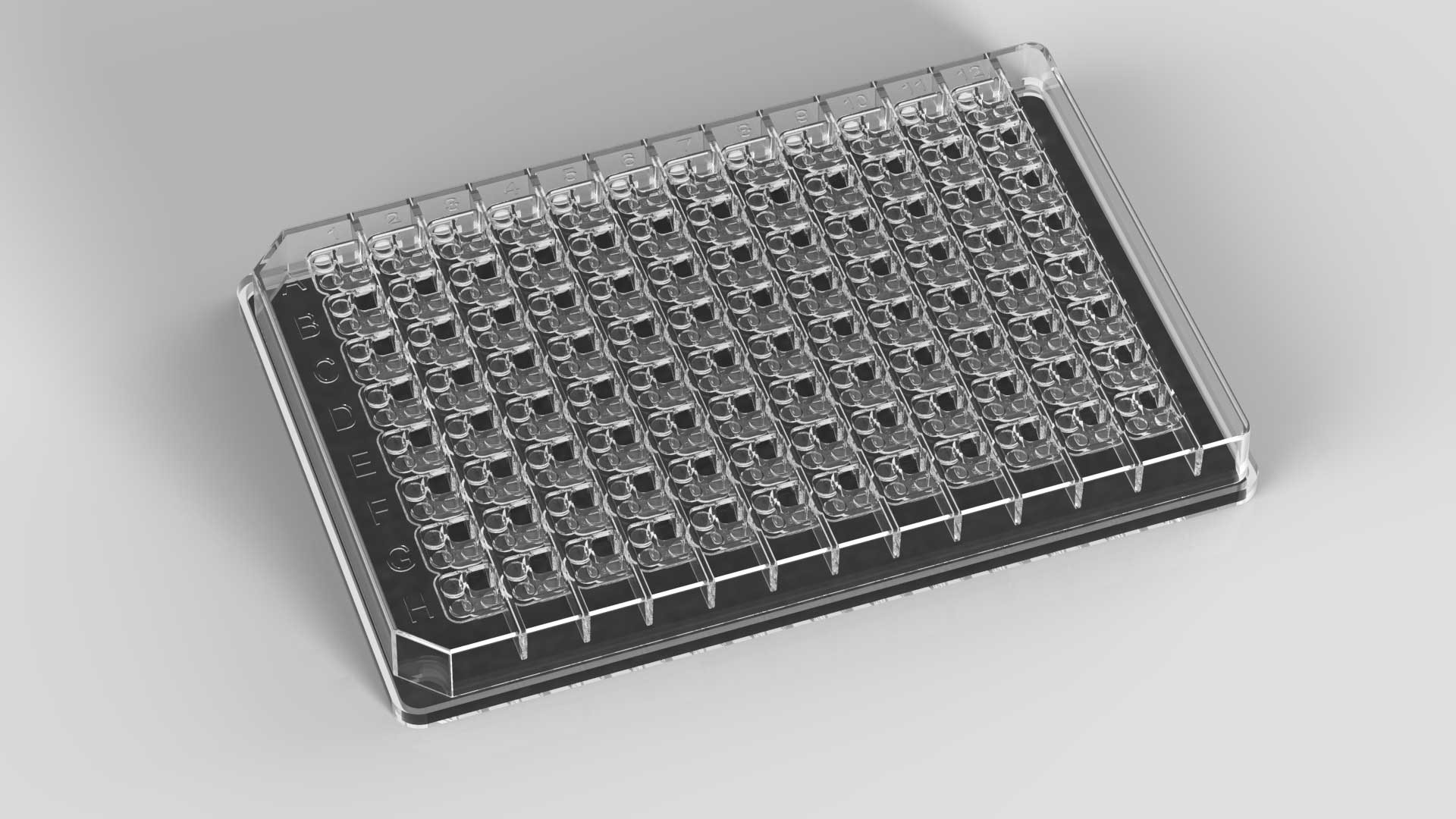

The SWISSCI 3 Lens Crystallisation Plate is an ideal product for protein crystallisation presented in a 96-well plate format. The SWISSCI 3 Lens Crystallisation Plate offers unique properties that make it ideal for both nano-litre crystallisation screening and micro-litre optimisation alike. Available in optically superior polymers and with an innovative well design allows easy crystal viewing and retrieval.
Easy Crystal Retrieval
Raised wide wells improve accessibility for crystal mounting.
Easy Viewing
The micro-numbering is visible by microscope.
The wells are a wide conical shape and have a lens effect for perfect illumination.
Available in 3 different polymers
Available in 3 Different Polymers. Polystyrene (PS), UVP and UVXPO. The UVXPO polymer is an optically superior UV transmissible polymer that additionally shows uniform (zero) background when using cross polarised light. Low Profile Version Available Low Profile (LP) Plate has the same optical properties and uses the same volumes as the midi plate while saving on storage space. The Low Profile Plate is 7.75 mm and the Midi Plate is 11.7 mm in height.
Better Sealing
Wide partition walls between the wells give plenty of area for sealing.
No central bending occurs in this very robust structure.
Excellent long term storage - no sample evaporation.
Wide range of volumes
Typical volumes are 20-40 μl of reservoir and 50 nl-5 μl drop size. The 288 optical wells offer three times the number of experimental conditions
