Swissci懸滴結晶板是一種新型的96孔蛋白質結晶系統，首次可以識別和移除單個孔，而不會干擾板內正在生長的晶體。非常適合nl結晶篩選和μl優化。專利設計產品，凸起的寬孔便于操作，Allen鑰匙系統可實現平穩拆卸，系統中新穎的封閉塞可直接用于隨后的顯微鏡觀察和X衍射。孔呈圓錐形，有透鏡效果，便于觀察；密封性好；容積大（儲液槽50-200μl，液滴50 nl-5μl）；符合ANSI/SLAS 1-2004標準。
品名：Swissci Hanging Drop Crystallisation Plug Plate
貨號：HDP96T-UVP

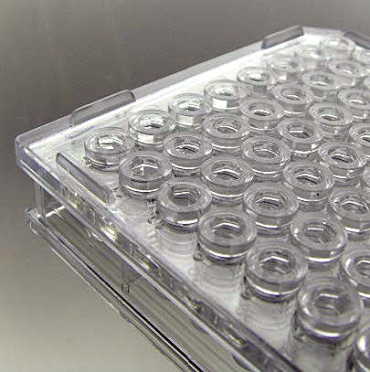

The SWISSCI Hanging Drop Crystallisation Plug Plate is a novel system for protein crystallisation in a 96-well format. Individual wells can be identified, removed, and harvested using the supplied Allen key, eliminating the need for a scalpel and tape. The plate has been developed by SWISSCI together with leading Crystallographers. It is the result of many years of experience in successful robotic high-throughput crystallisation. The Plate offers unique properties that make it ideal for both nanolitre crystallisation screening and microliter optimisation alike. Made from optically superior polymer (UVP) and with a new design of the wells, the plate allows easy crystal viewing and retrieval.
Easy Crystal Retrieval
Raised wide wells make the crystal mounting especially easy.
Allen key system allows for smooth removal and harvesting of crystals.
Easy Viewing
The wells can be easily viewed using a light microscope or imaging system.
The optically superior polymer is UV transmissible.
Integrated Sealing
Wide partition walls between each well provide a high surface area for very good sealing with the advanced quality sealing tape.
The sealing tape is integrated into the kit so there is no need to purchase additional parts prior to starting a procedure.
Wide range of volumes
Typical volumes are 50-200 μl of reservoir and 50nl-5μl drop size.
希凱生物是SWISSCI授權代理商，更多產品信息歡迎直接與我們聯系
北京 010-62220605 | 上海 021-66520678
